GBED204 Series High-Speed Connector for EV Charging Applications
New energy vehicle (NEV) charging systems involve multiple functions, including power conversion, power distribution, and control signal transmission. Each stage places different demands on current-carrying capacity, electrical insulation, and connection stability. As system integration continues to increase, achieving reliable electrical connections within limited installation space has also become an important consideration in connector selection.
Greenconn GBED204 series high-speed connector for EV charging system applications
An EV charging system typically includes Electric Vehicle Supply Equipment (EVSE) and the onboard charging system. The onboard system may incorporate an On-Board Charger (OBC), power distribution modules, a Battery Management System (BMS), and associated wiring harnesses and interfaces. Connectors enable power and control signal interconnections between these modules, while their electrical performance and mechanical reliability contribute to overall system stability.
High-Speed Connectivity for Onboard Charging Systems
Designed for compact layouts and reliable interconnections in automotive electronic modules, the Greenconn GBED204 series of 1.27 mm pitch horizontal high-speed connectors can be used for board-to-board connections in relevant applications. Connector selection should be evaluated according to the current, voltage, signal speed, and installation conditions of the specific circuit.
Dual-Contact Terminal Design
The dual-contact terminal structure and gold-plated contact surfaces help improve electrical contact stability.
Low Contact Resistance
Contact resistance of ≤25 mΩ helps reduce electrical transmission losses and supports efficient conduction and signal integrity.
High Insulation Resistance
Insulation resistance of ≥10,000 MΩ helps minimize current leakage and supports electrical isolation between modules.
500 V AC Withstand Voltage
With a dielectric withstand voltage of 500 V AC, the connector meets the electrical insulation requirements of applicable applications.

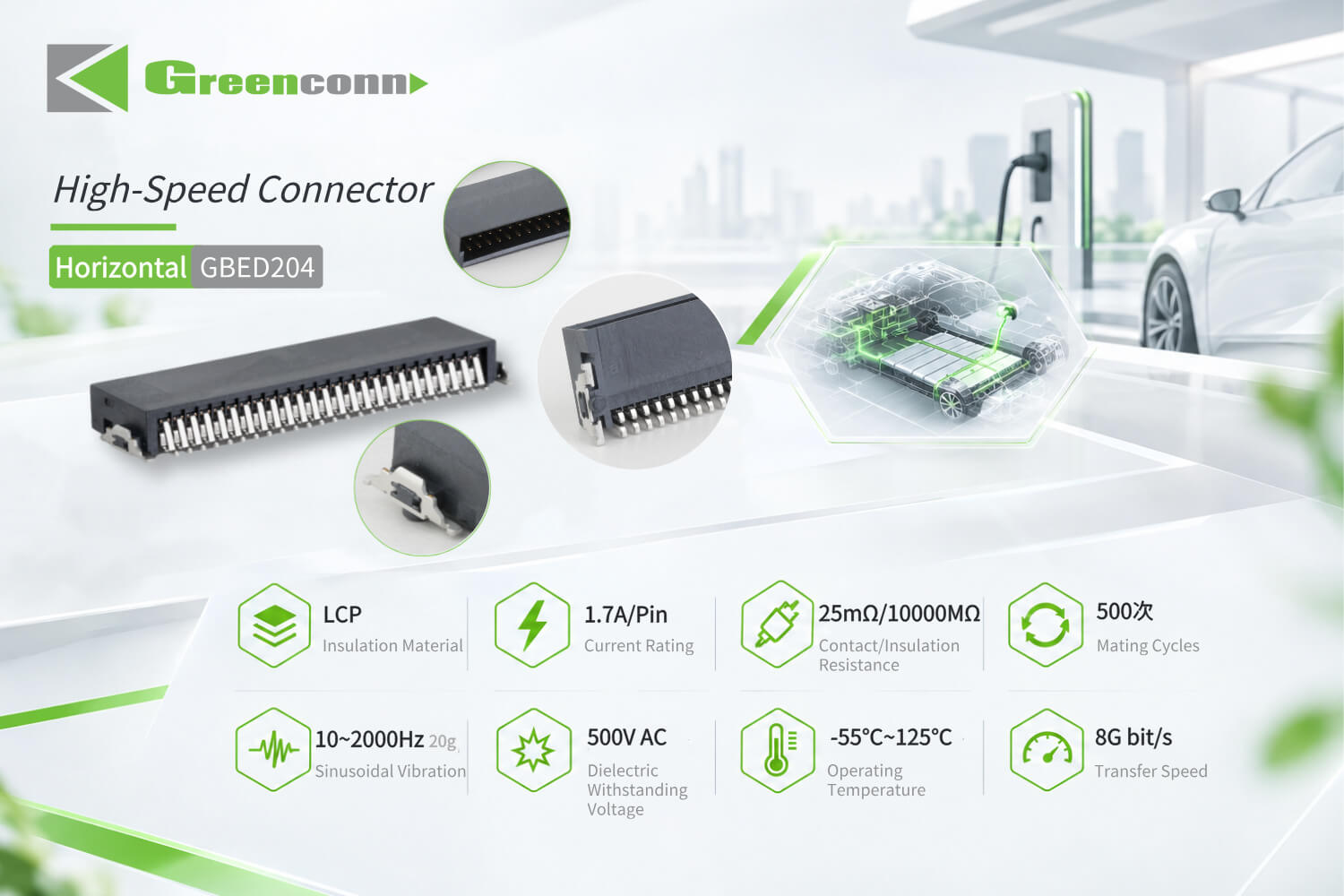

Greenconn GBED204 Series 1.27 mm Pitch Horizontal High-Speed Connector
The Greenconn GBED204 series of 1.27 mm pitch right-angle high-speed connectors provides a board-to-board interconnection option for new energy vehicle charging systems and related automotive electronic modules. Suitability for specific applications should be assessed based on system electrical requirements and mechanical design.
