Connector Solutions for Industrial PLC Multi-Module Applications

Programmable Logic Controllers (PLCs) are core components of industrial automation control systems. A typical PLC integrates multiple functional modules, including power supply, I/O, microcontrollers, communication interfaces, and HMI systems. With increasingly compact internal architectures, PLCs also need to connect with relays, variable frequency drives (VFDs), industrial gateways, and other automation equipment.

As a result, connectors used in PLC systems have evolved from simple electrical interconnection components into critical elements that directly influence system reliability, scalability, and signal transmission performance.

Higher Connectivity Requirements for Industrial PLCs

To support the miniaturization, modularization, and increasing intelligence of modern industrial PLCs, connectors need to deliver a combination of key performance characteristics:

Stable Interconnection: Withstand equipment vibration and long-term operation while reducing the risk of connection failure.
High-Density Layout: Enable power and multiple signal connections within limited installation space.
Flexible Expansion: Support different I/O configurations and the connection requirements of various field devices.
Reliable Communication: Ensure stable digital signal transmission in complex industrial environments.

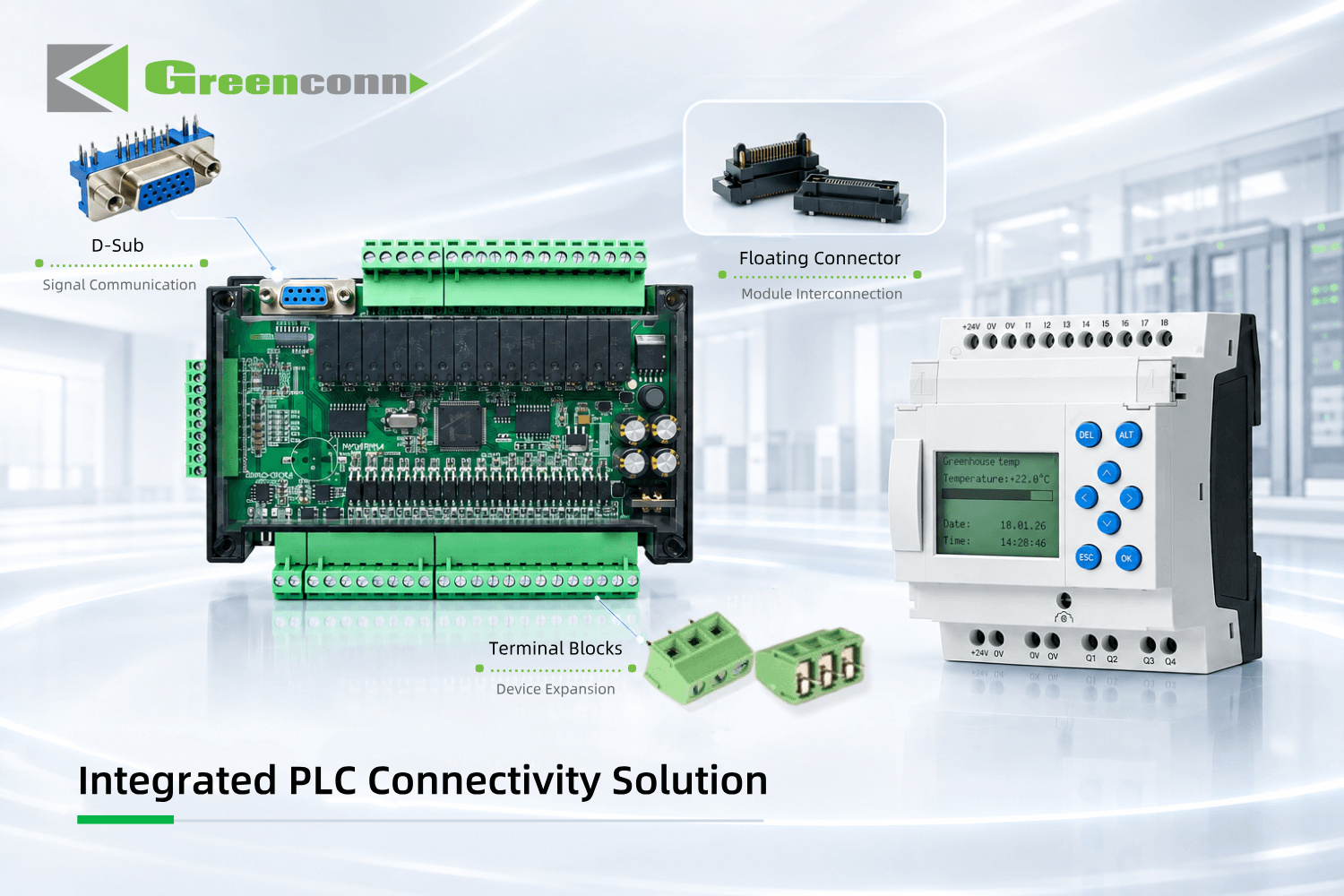

Greenconn Integrated PLC Connectivity Solution

Drawing on extensive application experience in industrial environments and addressing connectivity requirements from internal PLC control modules to external field devices, Greenconn has developed an integrated connectivity solution covering module interconnection, device expansion, and signal communication.

From internal PLC control modules and field-device expansion to communication interfaces and digital signal transmission, Greenconn connectors are designed to complement one another according to different connection points within a PLC system, forming a coordinated and comprehensive connectivity solution.

Floating Connectors: Interconnecting Internal PLC Control Modules

Floating connectors are designed for connections between internal PLC circuit boards and control modules. Their floating structure helps compensate for assembly tolerances and misalignment, improving connection stability during installation and operation.

X/Y/Z-axis floating capability helps accommodate equipment vibration and assembly tolerances.
High-temperature LCP insulating material supports long-term operation in demanding industrial environments.
0.5 mm pitch supports up to 3A power and 8 Gbps signal transmission, balancing space efficiency and transmission performance.
Recommended part numbers: GGAC203 / CGAC203

Terminal Blocks: Enabling Flexible PLC Expansion

Terminal blocks are designed for electrical connections between PLCs and field devices. Their configurable circuit capacity simplifies equipment installation, commissioning, and subsequent maintenance.

5.00 mm pitch, compatible with 14~24 AWG wires, simplifying on-site wiring and installation.
Withstands up to 2500V AC with a rated current of 15A, enhancing electrical connection safety and reliability.
Supports 2~24 positions, enabling flexible expansion according to PLC configuration requirements.
Recommended part number: CXLA105

D-Sub Connectors: Ensuring Reliable Digital Signal Transmission

D-Sub connectors are suitable for PLC communication and digital signal interfaces. Their metal shielding and screw-locking structure help improve connection reliability and signal integrity in industrial environments.

D-shaped metal shielding helps reduce the impact of external electromagnetic interference on signal transmission.
Screw-locking mechanism enhances resistance to vibration during equipment operation.
15-pin, three-row configuration supports digital signal transmission requirements.
Recommended part number: CDZB303

As industrial automation equipment continues to demand greater miniaturization, reliability, and modular connectivity, Greenconn provides connector combinations and engineering support tailored to different PLC architectures, installation spaces, and electrical requirements.

The solutions can be applied across a wide range of industrial automation applications, including industrial control systems, robotics, servo systems, industrial PCs (IPC), semiconductor equipment, and other automated manufacturing systems.

By combining connectors for internal module interconnection, field-device expansion, and communication interfaces, Greenconn helps build reliable and scalable PLC connectivity solutions for modern industrial automation.
