GT Series Wire-to-Wire Connectors Solutions for Hybrid Transmission Systems in New Energy Vehicles
Hybrid transmission systems in new energy vehicles integrate the motor, controller, and transmission into a highly coordinated powertrain platform. Intelligent control algorithms enable seamless switching between EV, series hybrid, parallel hybrid, and direct-drive modes, optimizing power output across different driving conditions such as traffic congestion, highway cruising, and hill climbing. As a core system for vehicle energy efficiency and power response, the hybrid transmission requires reliable electrical connectivity under demanding operating conditions.

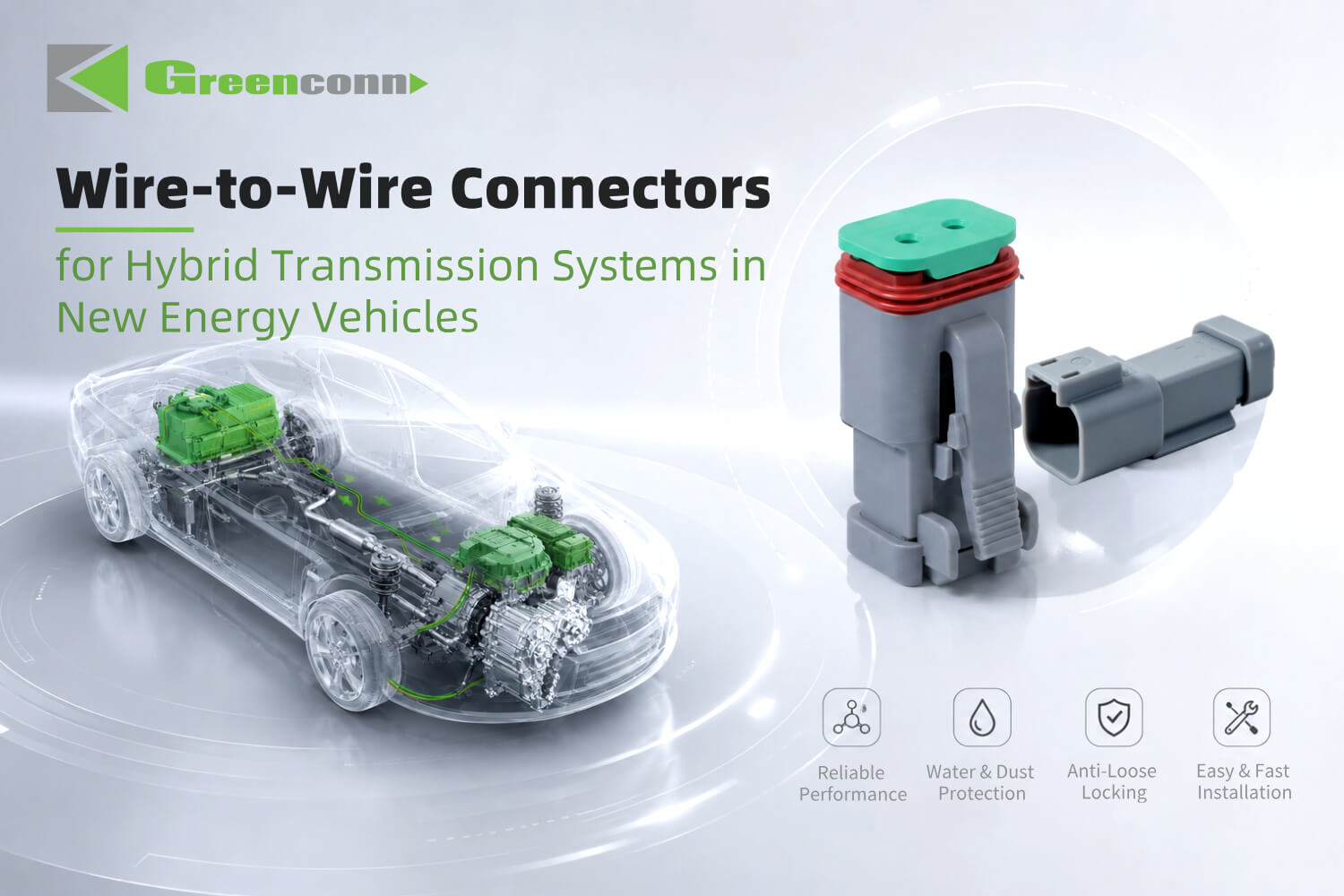

Greenconn GT Series Wire-to-Wire Connection Solution for Hybrid Transmission Platforms
Connectors inside the system play a critical role in power transmission, signal communication, and electrical safety. They must withstand harsh environments including high temperatures, vibration, and transmission oil exposure, placing higher demands on current-carrying capacity, vibration resistance, and environmental protection.
GT Series Wire-to-Wire Connector Application
Greenconn GT Series waterproof connectors feature a high-reliability structural design with anti-loosening latches and multi-layer sealing. Designed for high-protection applications in new energy vehicles, heavy-duty vehicles, and agricultural machinery, the series provides a reliable wire-to-wire connectivity solution for hybrid transmission systems.
l High-Voltage and High-Current Capability
Hybrid transmissions involve high-voltage electric drive systems. The GT Series supports up to 13A per contact and a dielectric withstand voltage of up to 1500V AC, meeting connectivity requirements for electric drive and signal control systems.
l Signal Transmission and EMI Resistance
Hybrid powertrains require real-time transmission of multiple control signals. With a highly sealed structure and low contact resistance design, the GT Series helps reduce environmental interference and maintain stable signal transmission.
l Reliable Performance in Harsh Environments
The GT Series operates across a temperature range of -55°C to +125°C and provides IP68/IP6K9K protection, along with strong resistance to mechanical vibration and shock. It is designed to withstand challenging conditions such as transmission oil exposure, vibration, and mechanical impact.
l Application Specifications
- Model: AGZ011-06APA
- Rated Voltage: 250V AC/DC
- Rated Current (Max.): 13A AC/DC
- Dielectric Withstanding Voltage: 1500V AC/min.
- Contact Resistance: 20mΩ max.
- Operating Temperature: -55°C to +125°C
- Protection Rating: IP68, IP6K9K

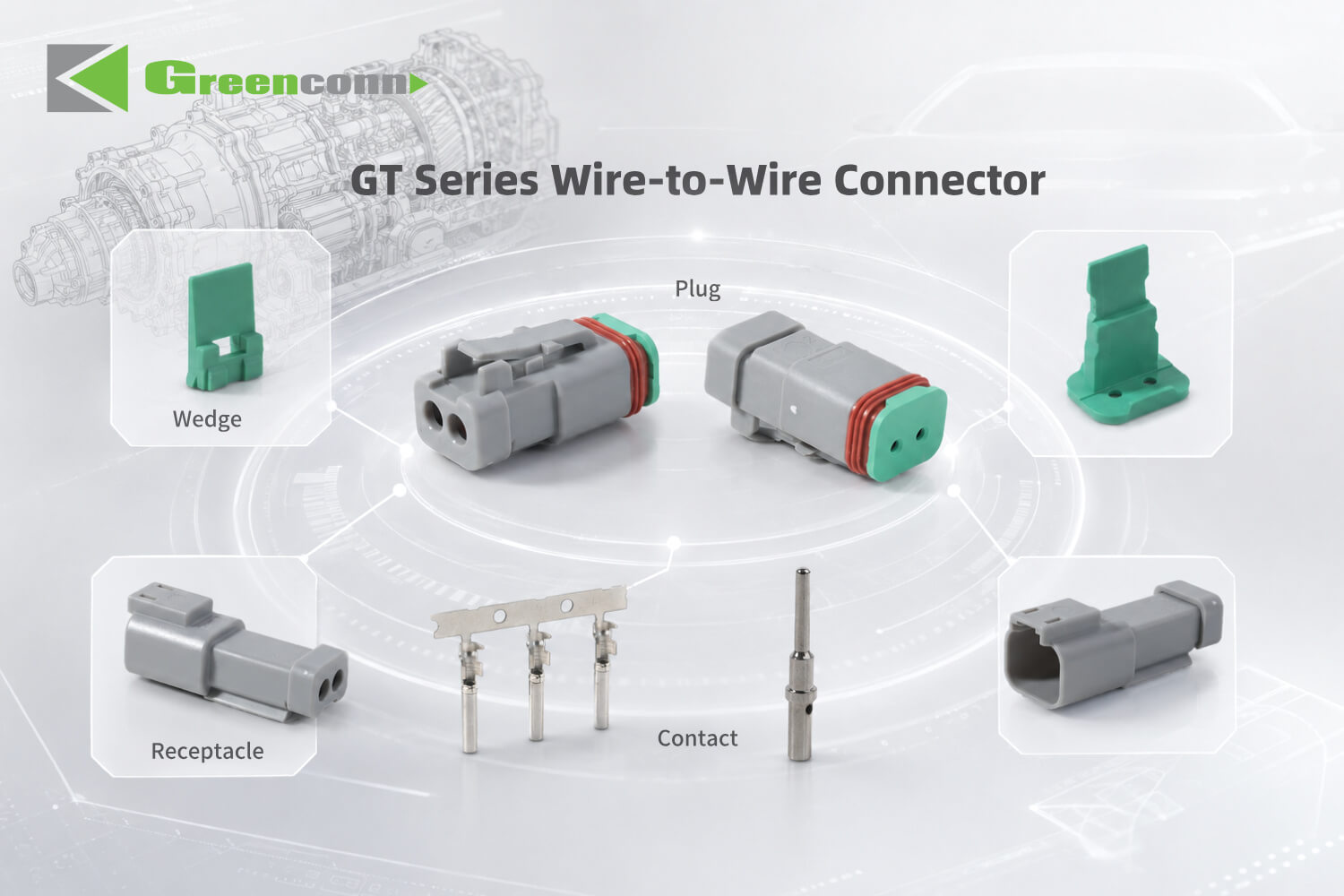

Greenconn GT Series Wire-to-Wire Connector Assembly Overview
As new energy vehicles continue to evolve toward greater intelligence and lightweight design, available space inside the vehicle is becoming increasingly optimized. Hybrid transmissions are also trending toward smaller size, lighter weight, and higher power density, placing greater demands on connector integration and reliability.
Designed for demanding operating conditions, Greenconn GT Series wire-to-wire connectors combine high dielectric withstand voltage, vibration resistance, and high-level environmental protection. They are suitable for battery packs, charging connections, hybrid transmission systems, and other new energy vehicle applications, providing reliable connectivity in challenging environments.
