GC01 Series Floating Connectors for Humanoid Robot Main Control Boards
As humanoid robots continue to evolve with higher computing power, greater system integration, and increasingly sophisticated motion control, their internal electronic architectures are rapidly transitioning toward multi-board collaborative designs. The main control board must efficiently coordinate data exchange among processors, vision modules, sensors, communication units, and motion control modules within a highly constrained space. This places increasingly stringent requirements on high-speed board-to-board connectivity, assembly reliability, and long-term operational stability.
High-Speed Interconnection Solution for Humanoid Robot Main Control Boards Using Greenconn GC01 Series Floating Connectors
Interconnection Challenges for Humanoid Robot Main Control Boards
With the growing integration density of robotic control systems, board-to-board connectors must simultaneously deliver high-speed signal transmission, precise assembly tolerance, and compact system integration. The primary challenges include:
High-Speed Data Transmission
Applications such as AI computing, machine vision, and motion control generate massive volumes of real-time data. Connectors must maintain excellent signal integrity to ensure stable, high-speed communication between electronic modules.
Assembly Misalignment Compensation
Minor positional deviations are unavoidable during the assembly of multiple PCBs. Floating connectors help compensate for these tolerances, reducing mechanical stress while improving assembly consistency and long-term connection reliability.
High-Density System Integration
The limited internal space of humanoid robots requires compact connector solutions that provide high contact density while supporting flexible configurations for both signal and power transmission.
Greenconn GC01 Series Floating Connector Solution
Designed for high-density, high-reliability robotic electronic systems, the Greenconn GC01 Series 0.50 mm Floating Board-to-Board Connectors combine an optimized floating mechanism with high-speed transmission capability to provide reliable interconnections for multi-board control architectures.
Key Features
- High-Speed Performance – Supports data rates of up to 16 Gbps, enabling high-bandwidth communication between AI computing platforms, high-performance control boards, vision systems, and communication modules.
- Integrated Signal and Power Contacts – Supports mixed signal and power configurations, maximizing PCB space utilization while simplifying system architecture.
- Floating Compensation Structure – Absorbs PCB assembly tolerances to reduce insertion stress, improve manufacturing consistency, and enhance long-term connection reliability.
GC01 Series Specifications
|
Parameter |
Specification |
|
Pitch |
0.50 mm |
|
Number of Contacts |
2~60 Positions |
|
Mated Height |
6.3–30.0 mm |
|
Floating Range |
X/Y: ±0.6 mm; Z: ±0.5 mm |
|
Rated Current |
Signal Contacts: 0.5 A/contact; Power Contacts: 3 A/contact |
|
Withstanding Voltage |
250V AC |
|
Insulation Resistance |
Signal Contacts: ≥100 MΩ; Power Contacts: ≥1000 MΩ |
|
Contact Resistance |
Signal Contacts: ≤70 mΩ; Power Contacts: ≤20 mΩ |
|
Operating Temperature |
-55°C to +105°C |

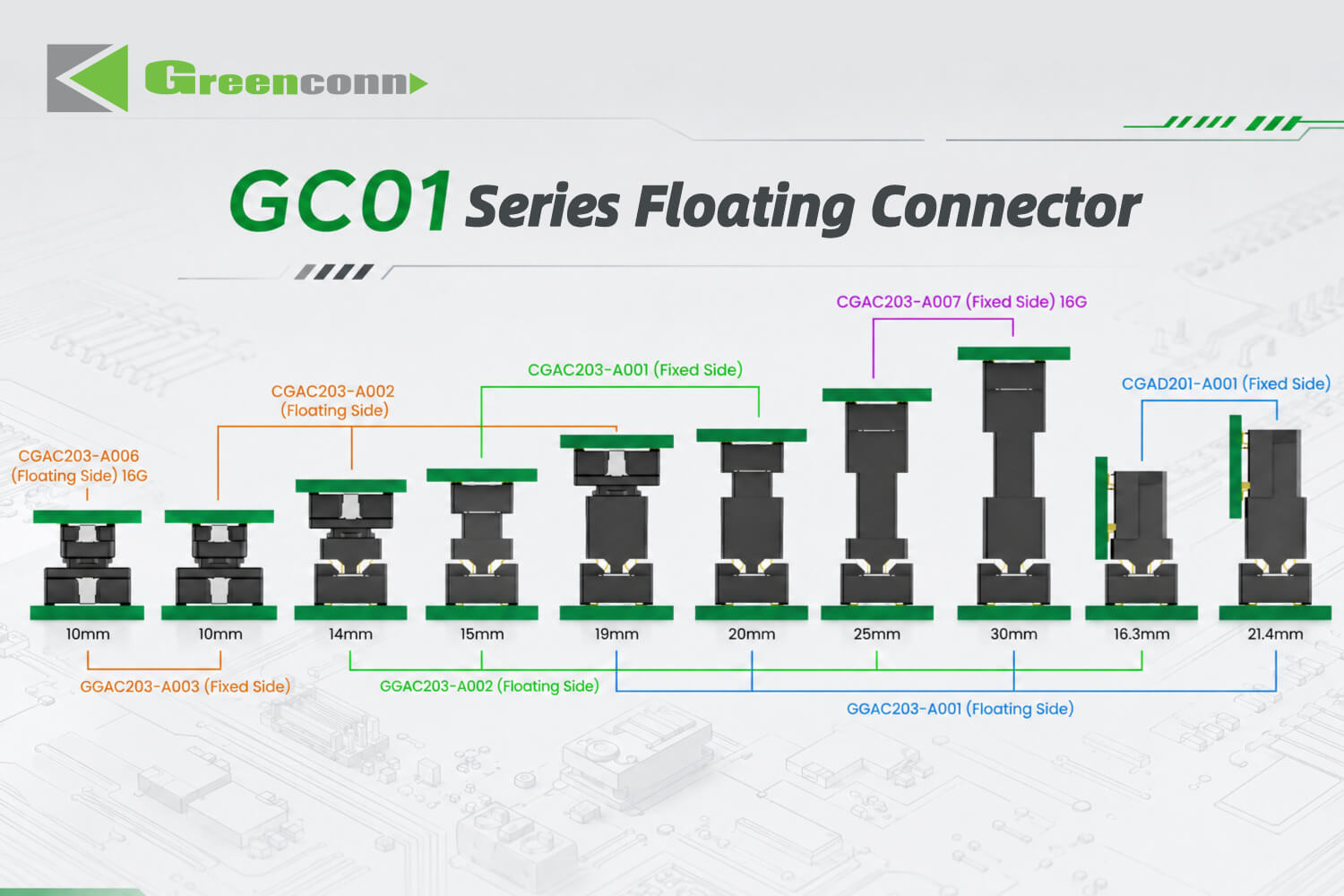

Greenconn GC01 Series Floating Connector Product Lineup
Comprehensive Interconnect Solutions for Robotic Electronic Systems
To address the diverse interconnection requirements of modern robotic platforms, Greenconn offers a comprehensive connector portfolio covering high-speed board-to-board interconnects, power connectors, and internal wire-to-board connectivity. These solutions provide reliable electrical connections for robot main control boards, functional modules, AI computing platforms, motion control systems, and other internal electronic subsystems, helping manufacturers build compact, high-performance, and highly reliable humanoid robot architectures.
