Greenconn GB01 Series Wire-to-Board Connectors for Automotive EPS Modules

Key Connections in EPS Systems

In Electric Power Steering (EPS) systems, connectors play a critical role in transmitting both power and signals between key components such as the ECU, torque sensors, and assist motors. As automotive electronics continue to evolve toward smaller, more integrated designs, EPS modules demand connectors that combine high reliability, vibration resistance, and adaptable form factors.

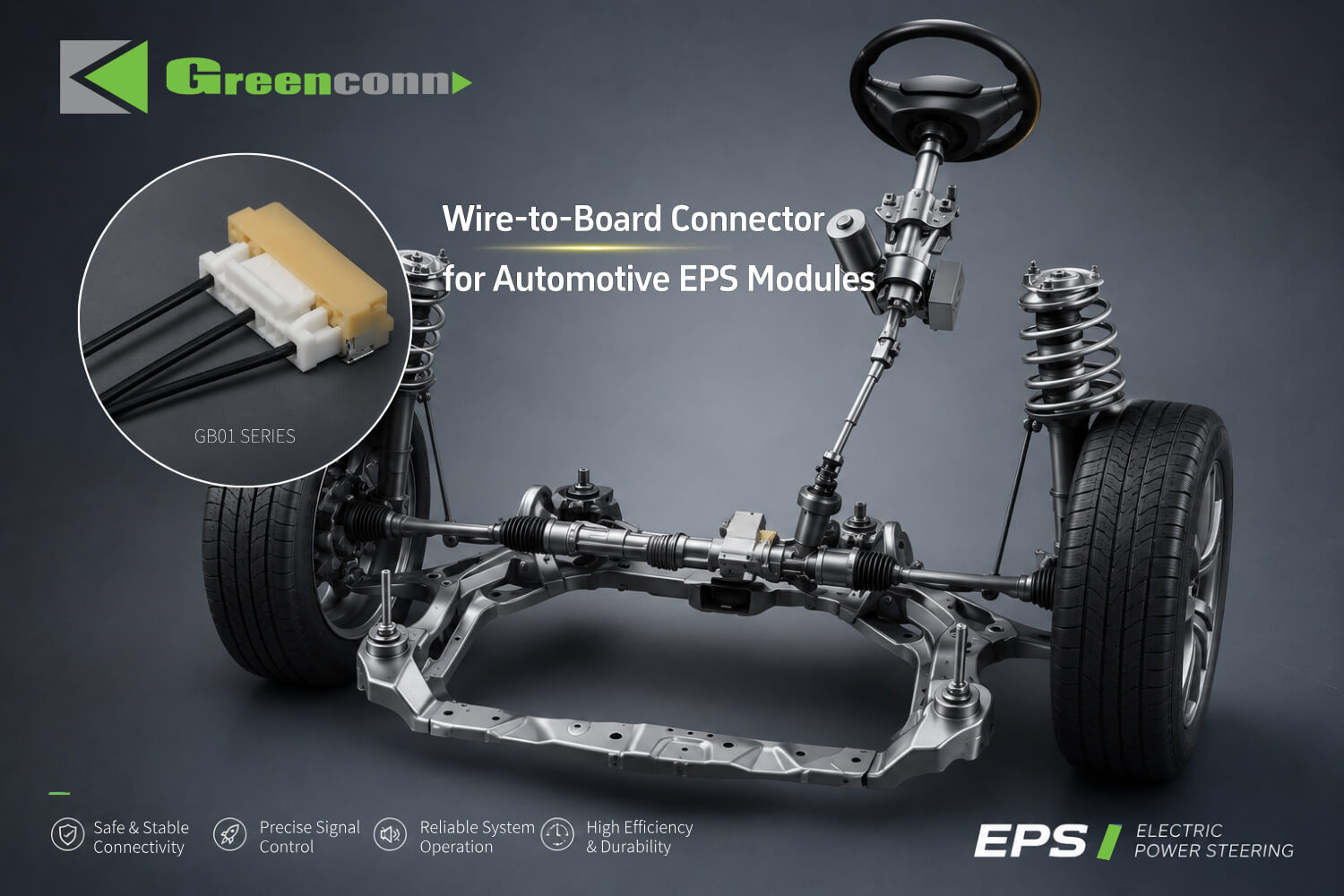

GB01 series wire-to-board connectors enable compact and reliable interconnections in automotive EPS control modules

Wire-to-Board Solution for EPS Applications

To meet the requirements for compact installation and stable connectivity in EPS systems, the Greenconn GB01 series wire-to-board connectors are available in 2–15 pin configurations, providing flexibility for various control modules and wiring layouts.

The 1.25 mm pitch not only suits compact control units but also helps optimize internal module space, supporting high-density routing and miniaturized electronics designs.

The GB01 series features a locking structure to reduce the risk of disconnection under vibration, enhancing overall system stability. Its housing is made from high-performance PBT engineering plastic, offering strong mechanical durability, heat resistance, and chemical stability—ensuring long-term reliable operation in automotive EPS environments.

GB01 Series Features

· 1.25 mm pitch for compact module integration

· Available in 2–15 pin configurations

· Rated voltage: 50 V AC/DC

· Maximum current: 1 A per pin

· Withstands 500 V AC insulation voltage

· Insulation resistance: ≥100 MΩ

· Locking structure design for improved connection stability

· Terminal anti-deformation design for reliable assembly

Product Selection

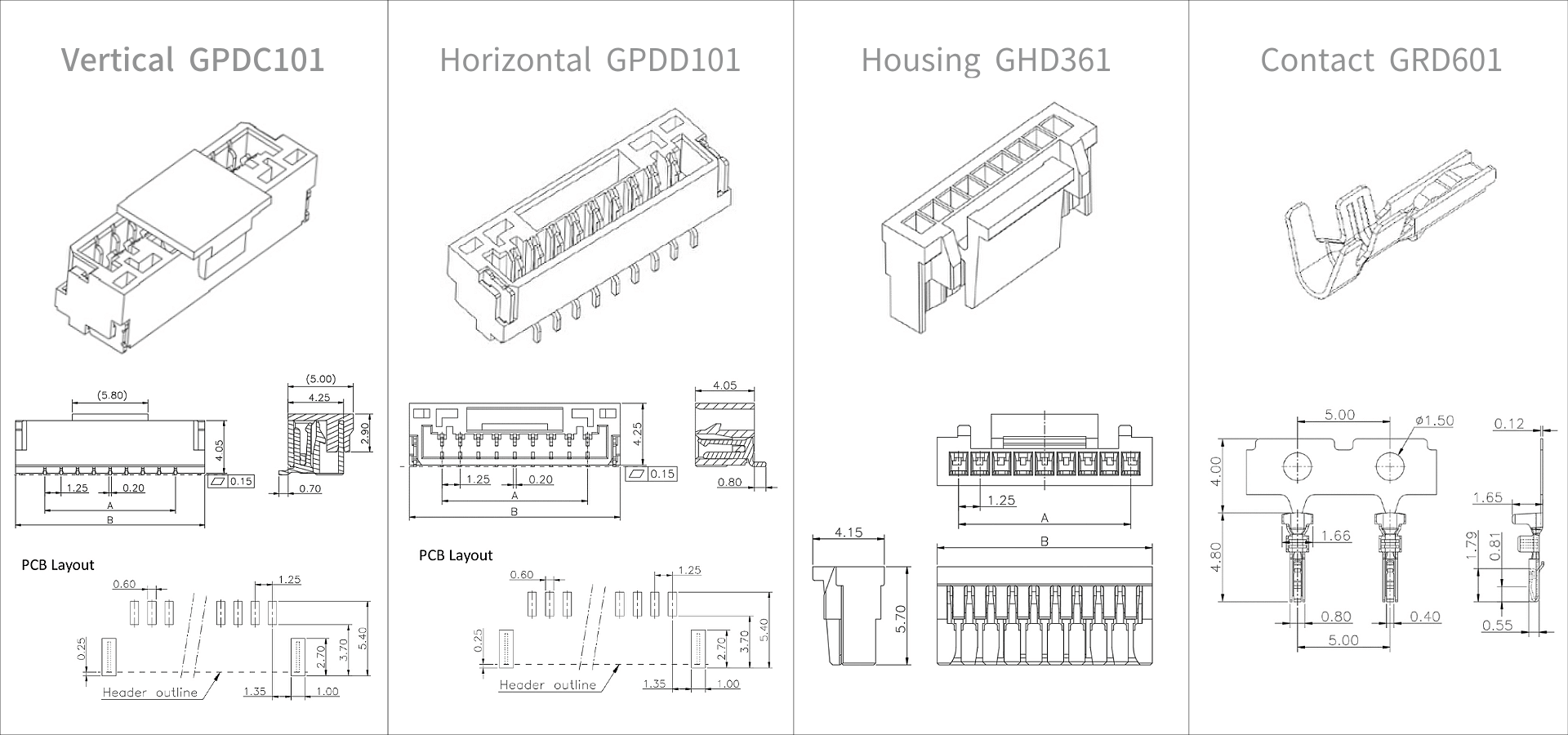

GB01 Series Wire-to-Board Connector Structure

Flexble Applications Across Electronic Systems

Beyond automotive EPS systems, the GB01 series wire-to-board connectors are suitable for industrial control, robotics, medical devices, and consumer electronics.

For devices that require high-density routing, space-efficient layouts, or long-term stable connections, the GB01 series provides reliable board-level interconnection solutions.

GB01 series wire-to-board connectors applied in automotive electronics and industrial equipment

Reliable Interconnects for Evolving Intelligent Systems

As electric vehicles, autonomous driving systems, and body electronics continue to advance, the demand for compact, high-reliability interconnection solutions grows. Greenconn continues to optimize the GB01 series for structural stability, environmental adaptability, and application versatility, providing dependable interconnect solutions for automotive electronics and industrial equipment.
