GBEC209 Series High-Speed Board-to-Board Interconnect for AGV Safety Control Systems
Automated Guided Vehicles (AGVs) are increasingly deployed in industrial automation and smart logistics applications. As system functionality evolves from basic material handling toward autonomous navigation, multi-sensor fusion, and coordinated control, the internal electronic architecture becomes significantly more complex.
In a typical AGV control system, the safety control module is responsible for real-time monitoring of operating conditions and executing protective actions when abnormal events occur, such as collisions, emergency stops, or intrusion into restricted zones, ensuring both system and personnel safety.
The safety control module is typically composed of multiple functional boards, which rely on high-speed board-to-board connectors for power and signal interconnection.
GBEC209 series enables stable high-speed interconnects for AGV safety control Systems
AGV Safety Control Interconnect Challenges
Within AGV safety control systems, board-level interconnects must meet multiple functional requirements, including:
Signal Integrity
Safety control systems require stable transmission of signals from emergency stop circuits, collision detection modules, and safety sensors. Any signal disturbance or interruption may affect system response consistency.
High-Speed Data Interconnect
With the adoption of industrial Ethernet and multi-board architectures, data communication rates within AGV systems continue to increase. Board-to-board interconnects must support high-speed data exchange between control modules.
EMC Performance
AGVs typically integrate motor drives, power conversion units, and wireless communication modules, resulting in a complex electromagnetic environment. The interconnect system must minimize crosstalk and signal reflection to ensure stable operation.
Mechanical Reliability
AGVs operate under continuous vibration and mechanical shock conditions. The interconnect system must provide stable contact performance and long-term mechanical reliability.
GBEC209 1.27mm High-Speed Board-to-Board Interconnect Solution
The Greenconn GBEC209 series 1.27mm high-speed board-to-board connector is designed for industrial control and high-density electronic systems, enabling power and signal interconnection between AGV safety control modules.

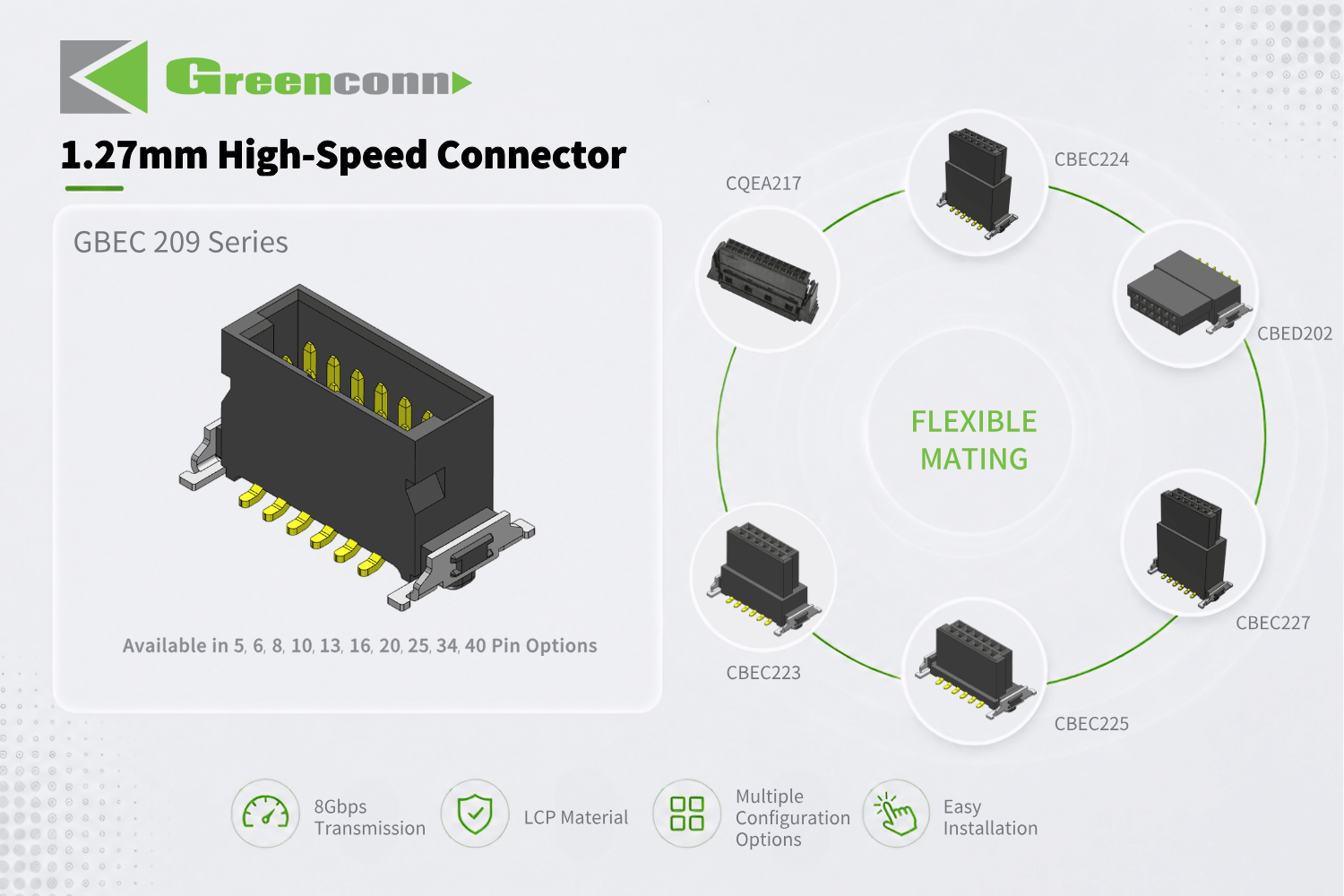

1.27mm High-Speed Board-to-Board GBEC209 Series Connector Mating Selection Guide
The series supports data rates up to 8Gbps, meeting the requirements of system architectures with mixed signal and multi-channel data transmission.
Through optimized contact design, GBEC209 helps maintain controlled impedance characteristics while reducing signal reflection and transmission loss, improving overall signal integrity.
Key Specifications
· Data Rate: 8Gbps
· Rated Current: 1.7A per pin
· Withstanding Voltage: 500V AC/min
· Insulation Resistance: 10000MΩ
· Contact Resistance: 25mΩ
· Operating Temperature: -55℃ to +125℃
Application Scope
The GBEC209 series is suitable for industrial electronic systems requiring high-speed board-level interconnects, including:
· AGV safety control systems
· Industrial robot control systems
· Safety PLC systems
· Industrial automation control equipment
· Servo drives and motion control systems
Application Scenarios of Greenconn 1.27mm High-Speed Connectors
As industrial automation systems continue to evolve toward higher integration and distributed control architectures, board-level interconnects play an increasingly important role in overall system reliability.
High-speed board-to-board connectors not only enable power and signal transmission but also impact signal integrity, communication stability, and long-term operational reliability.
The GBEC209 series supports a wide range of high-speed interconnect requirements in industrial control and automation applications.
