Precision Metal Stamping in Connector Terminal Manufacturing
In connector manufacturing, metal terminals serve as the primary interface for signal and power transmission. Their geometric precision, surface quality, and mechanical strength directly influence mating reliability, electrical performance, and long-term stability. But how does a coil of copper-alloy strip become a finely engineered terminal with micron-level dimensional control? The answer lies in high-speed precision metal stamping.

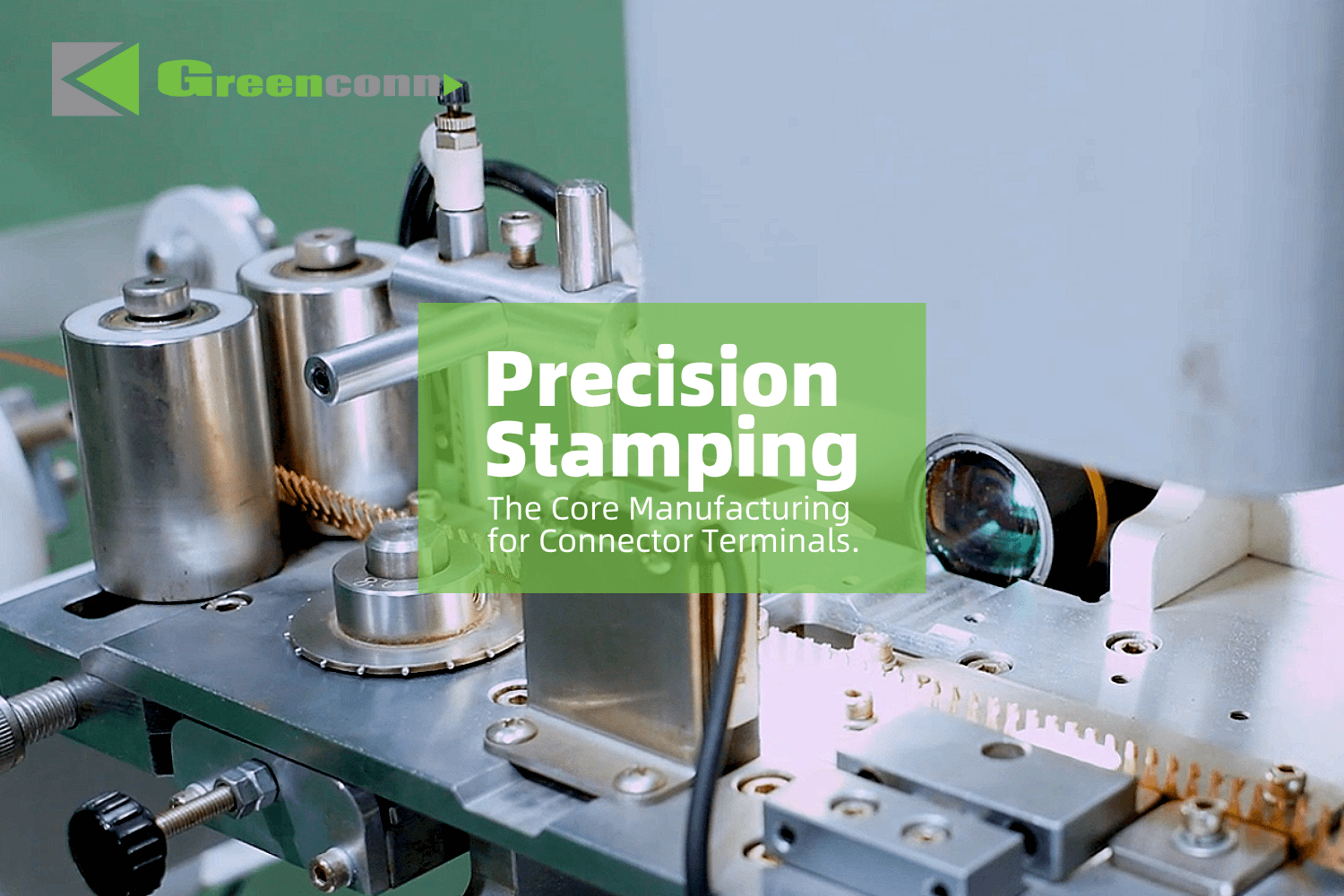

(Greenconn High-Speed Precision Stamping)
Metal stamping is a forming process in which a press and die apply force to a metal strip to create separation or controlled plastic deformation. In terminal production, high-speed stamping—typically performed with progressive dies—not only defines the terminal’s outline but also affects surface quality, dimensional uniformity, and the stability of downstream plating and assembly.
Greenconn has established a fully integrated high-speed stamping system. From die development and equipment tuning to process control and inline visual inspection, every stage is engineered to ensure high-volume, high-consistency terminal manufacturing.
Six Critical Stamping Processes for Connector Terminals
The precision of a terminal is the cumulative result of a tightly controlled process chain. Greenconn manages six key stages of the stamping flow, ensuring dimensional uniformity, structural stability, and high first-pass yield.
01 Blanking
Through automated feeding, the metal strip is punched, pierced, and trimmed according to the die profile, forming the base geometry of the terminal. Shear quality is strictly controlled to minimize burrs, stabilize the conductive cross-section, and secure dimensional accuracy for subsequent steps.
02 Bending
The material is formed along defined bend lines, with die optimization and bend-compensation techniques used to counteract natural springback. This ensures precise geometry, reliable positioning during assembly, and consistent mating performance.
03 Deep Drawing
Progressive forming transforms flat strip material into three-dimensional shapes required for springs, contact beams, or enclosed features. This process supports the complex geometries needed in high-precision applications such as medical and communication devices.
04 Fine Blanking
Fine-blanking technology delivers tighter dimensional tolerance and superior cut-surface quality, producing smoother contact areas. This contributes to lower contact resistance and improved signal integrity, especially in high-speed or EMI-sensitive applications.
05 Local Forming
Processes such as flanging, embossing, and leveling refine the terminal’s structural details and stress distribution. These steps reinforce mechanical stability, retention strength, and long-term durability during connector assembly and repeated mating cycles.
06 Progressive High-Speed Stamping
With advanced progressive stamping, feeding, forming, cutting, and inline inspection are executed in a fully automated sequence. This approach significantly increases throughput while maintaining stability and batch-level consistency.

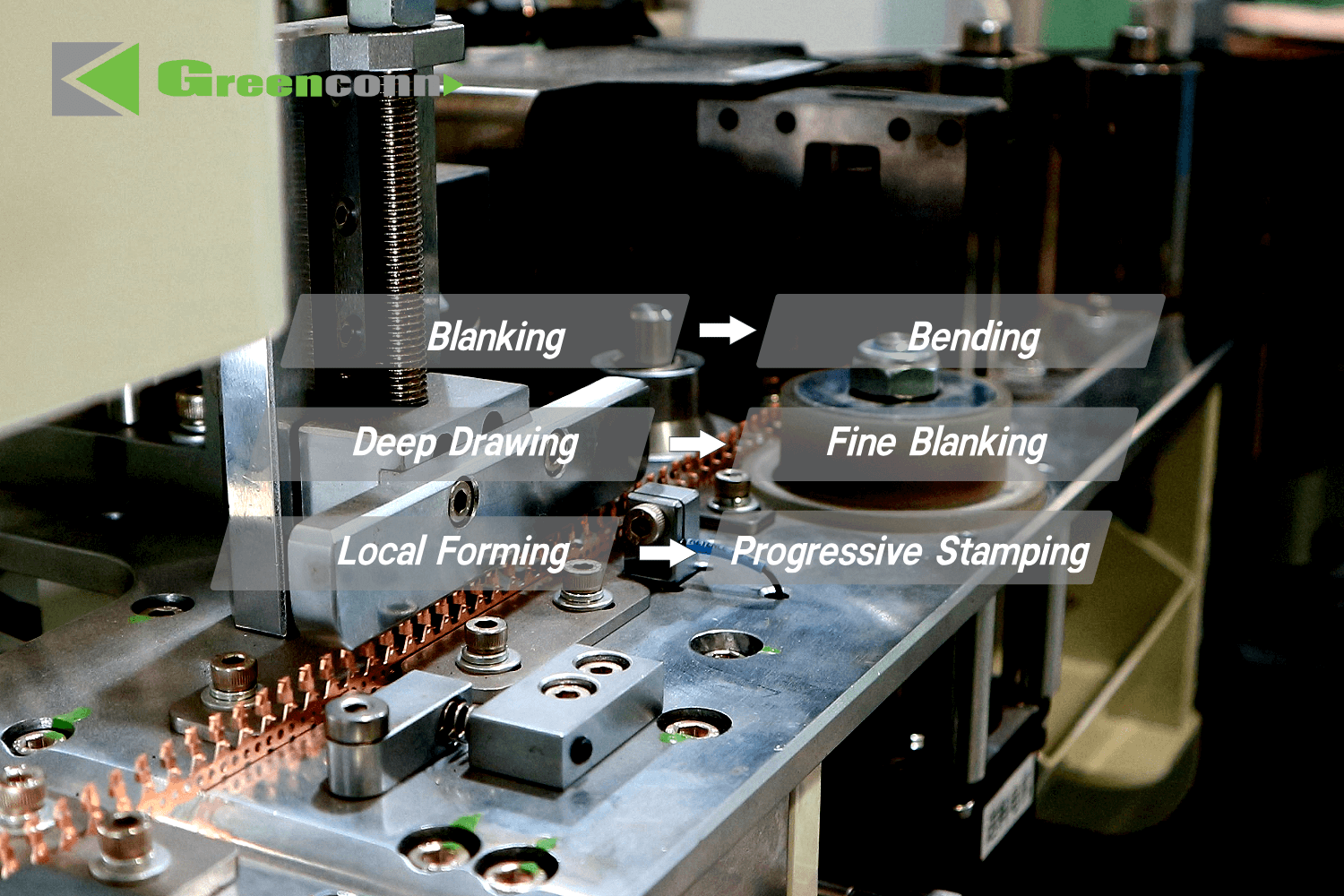

(Greenconn’s Six key stamping processes for connector terminals)
With a robust materials framework, micron-level die capabilities, and digitalized stamping management—supported by SPC control and die-life monitoring—Greenconn enhances the controllability and traceability of each forming stage. This ensures consistent terminal geometry and performance across large-scale production.
Metal terminals may be small, but they define the reliability of the entire connection. Guided by rigorous engineering standards, Greenconn maintains strict control over every manufacturing detail. Through continuous improvements in precision manufacturing, we remain committed to advancing the performance and reliability of next-generation connector technologies.
