Greenconn High-Speed Connectors for Precision Metal Detection

In automated production lines for food, pharmaceuticals, chemicals, and plastics, metal detectors play a critical role in identifying metallic contaminants, safeguarding product quality and safety. Detection sensitivity depends not only on the size, material, and position of metal particles but also on the stability and EMI resistance of the internal high-frequency signal system.

The detector’s transmitter system consists of coils and oscillators that generate a stable high-frequency magnetic field to sense metallic anomalies. To ensure these signals are accurately captured and transmitted to the processing module, the internal signal chain must maintain high integrity. Connectors, as key interfaces between the transmitter, receiver, and control units, are critical in high-frequency signal transmission. Subpar connector performance can lead to signal attenuation, distortion, or delay, resulting in missed detections, false alarms, or reduced overall sensitivity.

(Greenconn High-Speed Connectors for Precision Metal Detection)

Key Connector Requirements for Metal Detectors

Operating in harsh industrial environments with temperature fluctuations, vibration, and electromagnetic interference, connectors in metal detectors must meet stringent requirements:

High-frequency signal integrity: Minimize insertion and return loss, maintaining precise magnetic field resolution.
Strong EMI resistance: Reduce risks of false positives or missed detections.
Mechanical and environmental reliability: Withstand continuous vibration, impact, and temperature variations.
Low maintenance: Support long-term, uninterrupted production line operation.

As industrial production demands higher sensitivity and faster detection, metal detectors increasingly rely on high-speed signal processing, raising the performance requirements for connectors and other critical components.

GBEC209 Series: High-Speed Connectivity for Detection Systems

Meeting the demanding requirements for high-frequency signal integrity and structural reliability in industrial inspection equipment, Greenconn’s GBEC209 high-speed connectors are designed with optimized electromagnetic performance and robust construction. They deliver fast, stable, and interference-resistant signal transmission, providing dependable connectivity for critical modules in metal detectors and other inspection systems.

Key Specifications:

Withstand voltage: 500V AC/min
Insulation resistance: 10,000 MΩ
Transmission speed: 8Gbps
Mechanical durability: 500 mating cycles
Sine vibration: 10–2000Hz/20g
Half-sine shock: 50g/11ms
Operating temperature: -55℃ to 125℃

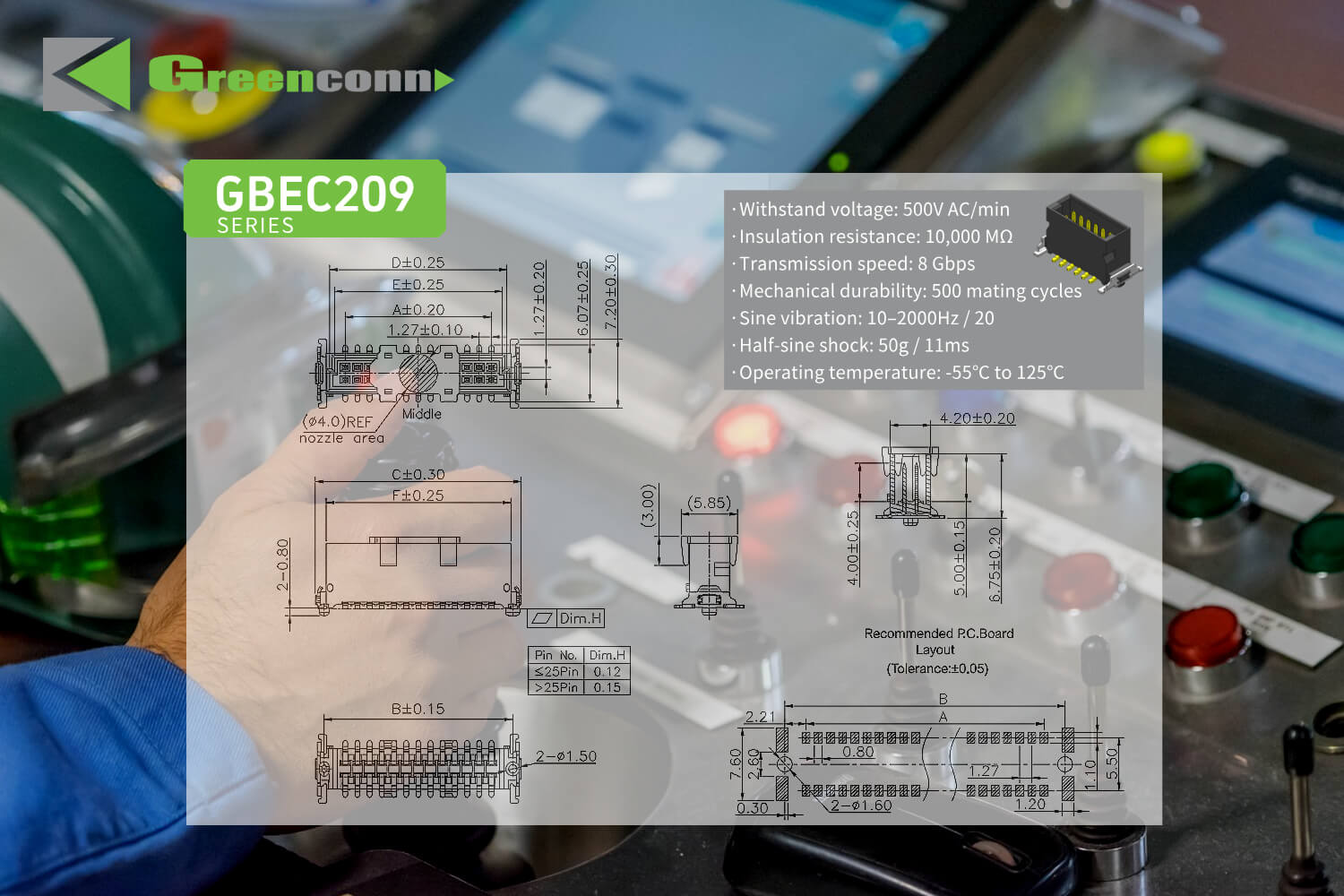

Greenconn High-Speed Connectors GBEC209 Series

(Greenconn High-Speed Connectors GBEC209 Series)

In high-speed, complex industrial environments, the performance of metal detectors and similar industrilies heavily on stable, interference-resistant high-frequency connectivity. Greenconn continues to innovate in high-speed connection technologies, providing reliable support for critical detection modules and ensuring every measurement is precise and efficient.
