GWRB201-A008

Production status: Active

If you would like to know more about this product, please contact us.

Specifications:
Pitch:4.20mm
Current Rating:9.00Amp AC/DC
Voltage Rating:600V AC/DC
Contact Resistance:10mΩ Max.
Insulation Resistance:1000MΩMin
Dielectric Withstanding Voltage:1500V AC/minute
Operating Temperature:-40ºC to +105ºC



Materials:
Contact Material:Brass
Insulation Material:Nylon

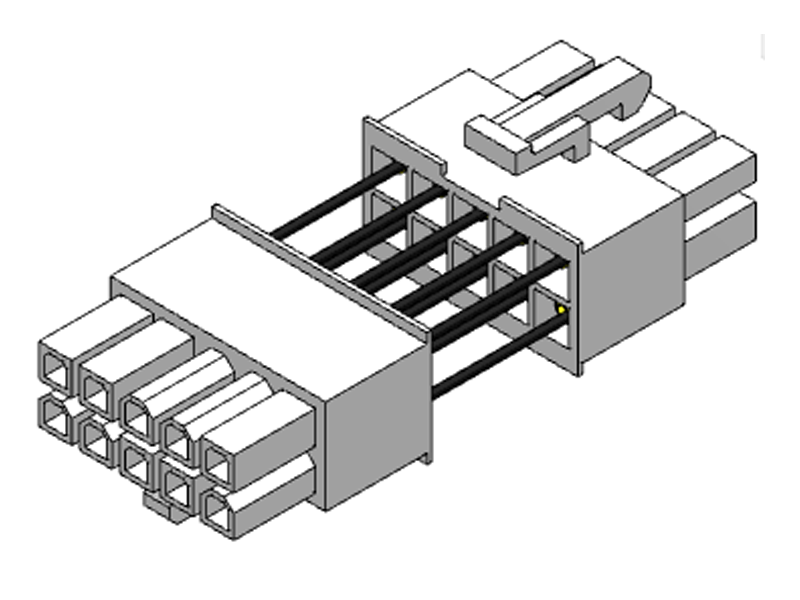

Cable assembly specifications:
Housing P/N:GHR232-HA
The Range of Pins :01~12PIN
Insulation Material:Nylon
Housing Color:Transparent



Contact P/N:GRR104-T1
Contact Thickness:0.20mm
Wire Range:18~20 AWG
Contact Materials:Phosphor Bronze
