Specifications：
Pitch：1.00mm
Current Rating：1.00Amp AC/DC
Voltage Rating：100V AC/DC
Contact Resistance：30mΩ Max.
Insulation Resistance：500MΩMin
Dielectric Withstanding Voltage：300V AC/minute
Operating Temperature：-35ºC to +85ºC

Materials：
Contact Material：Brass
Insulation Material：LCP

Cable assembly specifications：

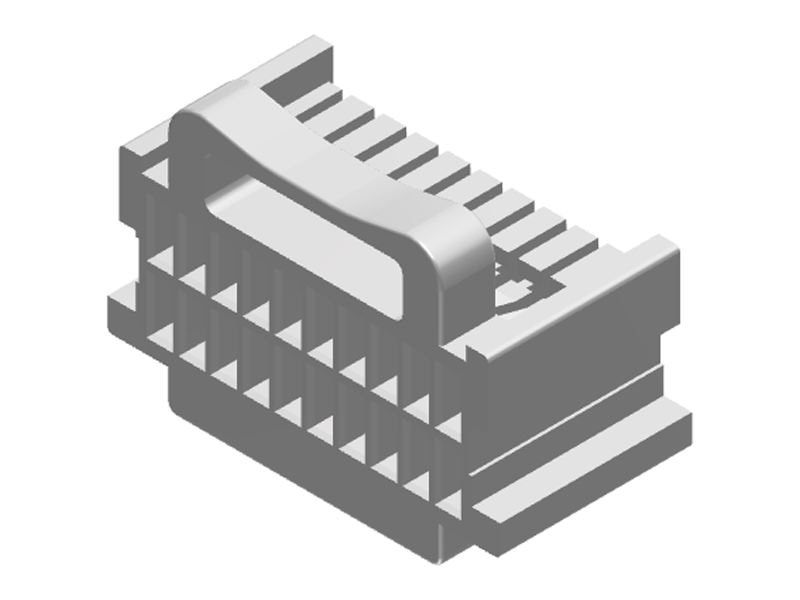

Housing P/N：HWF28-ECD001
The Range of Pins ：10/15/20/25 PIN
Insulation Material：PBT
Housing Color：Natural

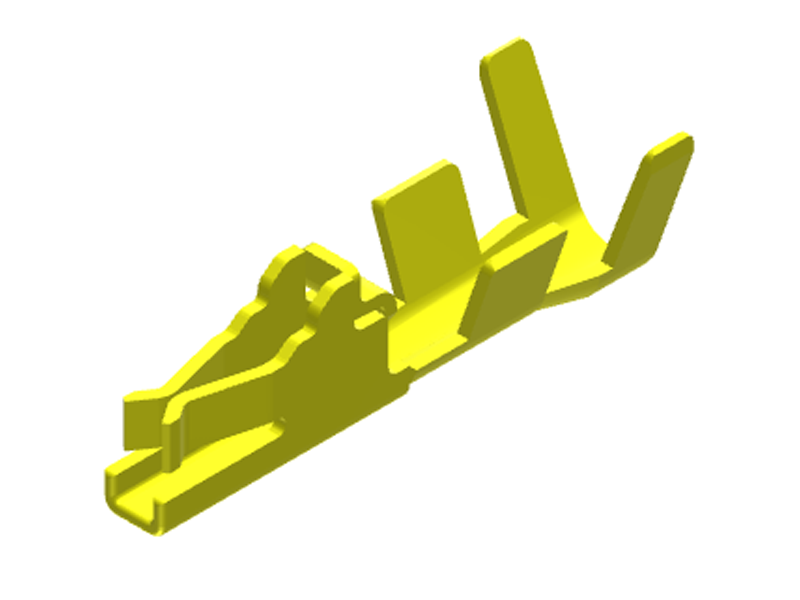

Contact P/N：TWF28-ECD001
Contact Thickness：0.12mm
Wire Range：26/28/30/32 AWG
Contact Materials：Phosphor Bronze
