All-Weather Waterproof Solutions for Outdoor Power Equipmen

Outdoor equipment such as lawn mowers and handheld cutters must operate in environments exposed to rain, mud, dust, and frequent vibration. Insufficient connector protection can lead to poor contact, corrosion, or short circuits, compromising reliability and service life. Greenconn waterproof connectors have already been applied in multiple modules of these devices, providing dependable connections for a wide range of electrical interfaces.

Application Challenges

• Rain and mud intrusion at outdoor electrical interfaces

• Continuous vibration from engines and blades causing loose connections

• Thermal cycling stressing component stability

• Maintenance requiring quick mating/unmating while avoiding misalignment

Connection Solutions

Greenconn’s high-performance waterproof connectors  (GT/GA01 series) provide highly reliable, all-weather electrical connection solutions for outdoor power equipment.

·  IP68/IP6K9K Protection: Dust- and waterproof for long-term reliability

·  High Current Capacity: Up to 13A, meeting power system requirements

·  Anti-Vibration Design: Stable connections under long-term vibration

·  Wide Temperature Range: -55°C to +125°C for extreme conditions

·  Wire Compatibility: AWG14–AWG26

·  Flexible Configurations: Wire-to-wire / wire-to-board

· High withstanding Voltage: Up to 1500V AC / 1 min for safe operation

Application Case

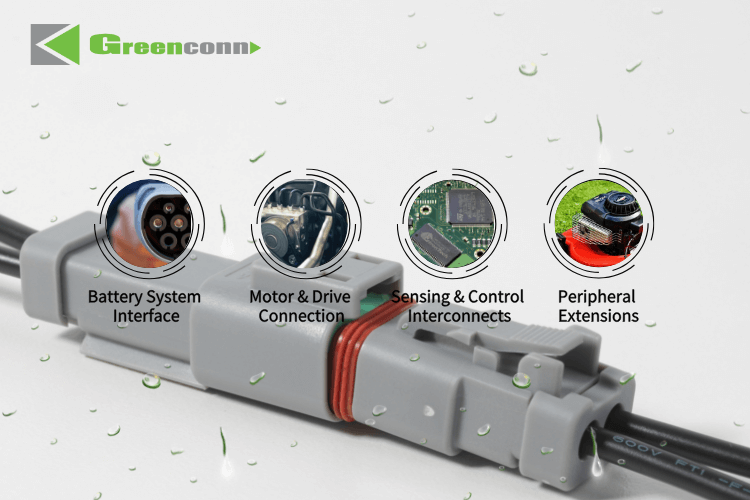

In our customers’ robotic lawn mowers and handheld cutting machines, Greenconn waterproof connectors are integrated into multiple modules—including charging stations, bottom assemblies, main harnesses, control units, sensors, and indicators—supporting diverse electrical connection needs and module layouts:

•Battery System Interfaces: Act as the main power interface between battery pack and the host, combining waterproofing and high-current transmission with quick mating.

•Drive & Motor Connections: Ensure stable power and signal transmission between controllers and drive motors for smooth operation of movement and cutting blades.

•Sensor & Control Unit Interconnection: Connect ECU with boundary sensors, tilt sensors, radar, or cameras for accurate and reliable signal transmossion.

•Peripheral Accessories: Used for grass bag sensors, lighting, and other modules,enabling easy expansion and maintenance in compact spaces with high protection needs.

Greenconn waterproof connectors ensure reliable wire-to-wire and wire-to-board connections, customizable to specific module and equipment requirements. They maintain stability in wet, muddy, and high-vibration environments, reducing failure rates and maintenance costs—ensuring long-term reliable operation of outdoor cutting equipment.

Learn more about Greenconn connection solutions. Contact us today!
